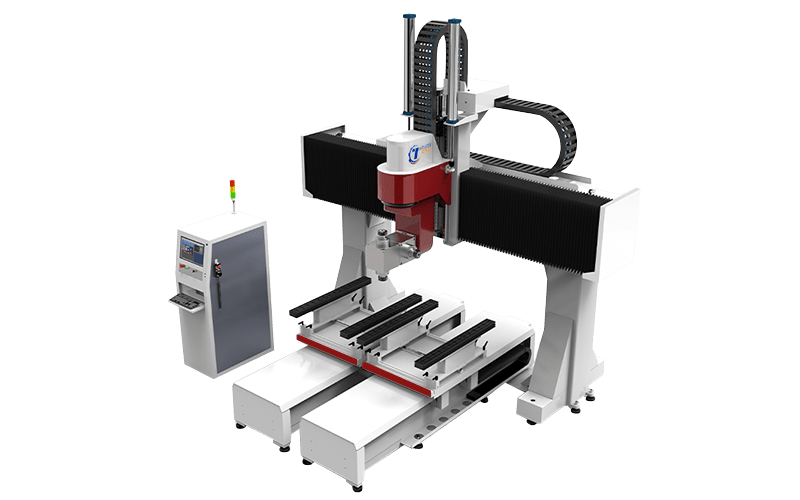

5-Axis CNC router Double Station Machining Center
Features
Dual Working Stations: Our 5 Axis CNC Router features two stations
Gantry Landing Design: The gantry of our machine operates independently while the bed remains stationary, which enhances structural rigidity and boosts processing speed. This design ensures stable and efficient performance during operation, leading to improved results.
High-Quality Electrical Accessories: We utilize internationally renowned brands for the main electrical components of our 5 Axis CNC Gantry Router. This commitment to quality guarantees stable performance and reliability, ensuring consistent operation throughout your projects.
Versatile Material Compatibility: Our CNC Gantry Router excels at cutting and engraving a diverse range of materials, including wood, acrylic, PVC, resin, foam, EPS, density board, plaster, organic glass, and soft metals. It is widely used in various applications such as casting molds, bathroom molds, automobile molds, resin products, cabinet doors, wooden doors, solid wood furniture, audio boxes, computer tables, game cabinets, and more.
Customizable Accessories: All accessories for this machine can be tailored to meet specific customer requirements. This flexibility allows for personalized configurations that cater to unique project needs.
Product parameters
| Name | Parameter |
| X-axis maximum travel | 2400mm |
| Y-axis maximum travel | 1200mm |
| Z-axis maximum travel | 600mm |
| Maximum gantry width | 4000mm |
| Maximum gantry height | 2300mm |
| A-axis swing angle | -120°⁓120° |
| C-axis rotation angle | -400°⁓400° |
| X, Y axis movement speed | 0⁓50000mm/min |
| Z axis movement speed | 0⁓20000mm/min |
| A. C-axis movement speed | 170、270°/sec |
| X, Y axis feed speed | 0⁓20000mm/min |
| Z axis feed speed | 0⁓15000mm/min |
| X, Y, Z axis feed acceleration | 3m/s2 |
| Workbench load-bearing | 500kg |
| Spindle maximum speed | 24000r/min |
| Maximum output power | 20kw |
| Machine packaging size | 4.0×3.0x3.7m LHW |
| Machine weight | 6ton |
More about ATC 5 axis
Demas 5 Axis Head, Better Precise Shaping
- The L-shaped Demas 5-axis head is a critical motion component of the ATC 5-axis CNC router. It features a compact design that enables smooth and high-speed rotation, enhancing operational efficiency. This head utilizes Japanese absolute value bus servo motors paired with low backlash RV reducers, ensuring precise movements.It is particularly well-suited for fabricating soft materials, making it effective for drilling, milling, and cutting various substances such as wood, acrylic, aluminum, copper, stone, and foam. This versatility allows for a wide range of applications in different manufacturing processes.
4 blades
Having four blades allows for simultaneous cutting operations, which significantly enhances the efficiency of the machining process. This means that multiple facets of a workpiece can be machined at once, reducing overall processing time and increasing throughput. With multiple blades working in conjunction, the workload is distributed more evenly across the tools. This can lead to reduced wear on each individual blade, extending their life and reducing the frequency of tool changes, which can be both time-consuming and costly.
5 Axis CNC Router Machine Videos
Samples
Industry-handling solutions
- Furniture Manufacturing: 5-axis CNC routers are extensively used in the production of custom furniture pieces, such as tables, chairs, and cabinets. They can create elaborate designs and shapes, enhancing the aesthetic appeal of wooden furniture while maintaining structural integrity
- Wood Carving: The ability to approach wood from multiple angles allows for detailed sculpting and carving. Artisans can produce intricate patterns and designs, making unique decorative items or artistic pieces that showcase craftsmanship
- Sign Making: These routers are ideal for creating three-dimensional signs and logos from wood. The precision of 5-axis machining ensures that lettering and graphics are sharp and well-defined, making them suitable for both indoor and outdoor applications
- Modeling and Prototyping: In architectural and product design, 5-axis CNC routers facilitate the rapid creation of prototypes and models. This capability allows designers to visualize their concepts in three dimensions, aiding in the development process
- Custom Wood Products: The versatility of 5-axis routers enables manufacturers to produce a wide range of custom wood products, from decorative moldings to complex architectural elements. This flexibility meets the demands of diverse customer specifications
