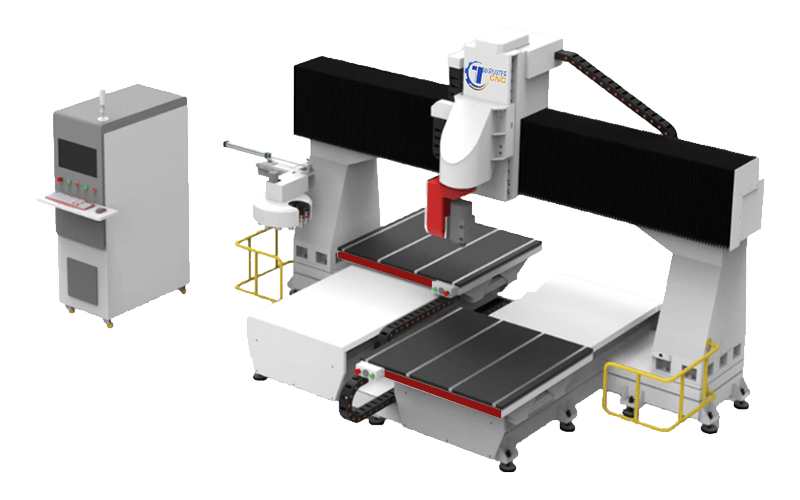

5 Axis CNC Router with Two Working Tables
Features
Dual Working Tables: Our 5 Axis CNC Router features two working tables, significantly enhancing processing speed. This innovative setup allows for independent operation or synchronized movement, making it ideal for both small parts requiring rapid processing and larger projects that demand a more extensive processing area.
Gantry Landing Design: The gantry of our machine operates independently while the bed remains stationary, which enhances structural rigidity and boosts processing speed. This design ensures stable and efficient performance during operation, leading to improved results.
High-Quality Electrical Accessories: We utilize internationally renowned brands for the main electrical components of our 5 Axis CNC Router. This commitment to quality guarantees stable performance and reliability, ensuring consistent operation throughout your projects.
Versatile Material Compatibility: Our CNC Router excels at cutting and engraving a diverse range of materials, including wood, acrylic, PVC, resin, foam, EPS, density board, plaster, organic glass, and soft metals. It is widely used in various applications such as casting molds, bathroom molds, automobile molds, resin products, cabinet doors, wooden doors, solid wood furniture, audio boxes, computer tables, game cabinets, and more.
Customizable Accessories: All accessories for this machine can be tailored to meet specific customer requirements. This flexibility allows for personalized configurations that cater to unique project needs.
Product parameters
| Name | Parameters |
| Maximum X-axis travel | 2400mm |
| Maximum Y-axis travel | 1000mm |
| Maximum Z-axis travel | 600mm |
| Maximum gantry width | 4200mm |
| Maximum gantry height | 2200mm |
| A-axis pendulum angle | -120°⁓120° |
| C-axis rotation angle | -400°⁓400° |
| X, Y axis moving speed | 0⁓40000mm/min |
| Z-axis travel speed | 0⁓10000mm/min |
| A, C axis moving speed | 170、270°/sec |
| X, Y axis feed rate | 0⁓20000mm/min |
| Z-axis feed rate | 0⁓5000mm/min |
| X, Y, Z axis feed acceleration | 3m/s2 |
| Table Load | 600kg |
| Maximum spindle speed | 18000r/min |
| Maximum output power | 20kw |
| Machine package size | 4.2×2.2×3.7m LHW |
| Machine weight | 3.5ton |
More about ATC 5 axisCNC
Demas 5 Axis Head, Better Precise Shaping
- The L-shaped Demas 5-axis head is a critical motion component of the ATC 5-axis CNC router. It features a compact design that enables smooth and high-speed rotation, enhancing operational efficiency. This head utilizes Japanese absolute value bus servo motors paired with low backlash RV reducers, ensuring precise movements.It is particularly well-suited for fabricating soft materials, making it effective for drilling, milling, and cutting various substances such as wood, acrylic, aluminum, copper, stone, and foam. This versatility allows for a wide range of applications in different manufacturing processes.
ATC System, Brings Labor Freedom
The ATC (Automatic Tool Changer) system provides operators with enhanced freedom when operating the 5-axis CNC router. This carousel tool changer can manage 8, 12, 16, or 24 tools, allowing for efficient tool switching without manual intervention.
Equipped with a global brand HSK tool holder and collets, this system ensures high precision and reliability during machining operations. The ATC system significantly reduces downtime and increases productivity, making it ideal for complex projects that require multiple tool types.
5 Axis CNC Router Machine Videos
Samples
Industry-handling solutions
- Furniture Manufacturing: 5-axis CNC routers are extensively used in the production of custom furniture pieces, such as tables, chairs, and cabinets. They can create elaborate designs and shapes, enhancing the aesthetic appeal of wooden furniture while maintaining structural integrity
- Wood Carving: The ability to approach wood from multiple angles allows for detailed sculpting and carving. Artisans can produce intricate patterns and designs, making unique decorative items or artistic pieces that showcase craftsmanship
- Sign Making: These routers are ideal for creating three-dimensional signs and logos from wood. The precision of 5-axis machining ensures that lettering and graphics are sharp and well-defined, making them suitable for both indoor and outdoor applications
- Modeling and Prototyping: In architectural and product design, 5-axis CNC routers facilitate the rapid creation of prototypes and models. This capability allows designers to visualize their concepts in three dimensions, aiding in the development process
- Custom Wood Products: The versatility of 5-axis routers enables manufacturers to produce a wide range of custom wood products, from decorative moldings to complex architectural elements. This flexibility meets the demands of diverse customer specifications
