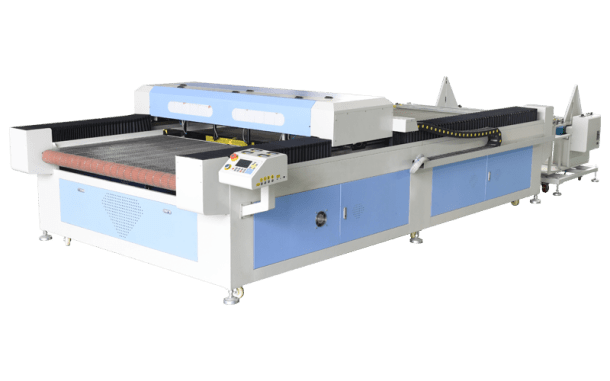

TL-2030
Automatic CO2 Laser Cutter For Clothing, Garment, Apparel
Features
- Automated Material Handling: An automatic feeding system (roll feeder or roller table) saves time and costs while boosting work efficiency.
- Effortless Material Movement: The specialized roller table with automatic feeding allows materials to move freely across the cutting surface, simplifying the workflow.
- Efficient Fabric Collection: An auto-collecting device streamlines the removal of finished pieces.
- Precision and Durability: A linear guide rail and precision gears ensure accuracy and speed, while the open stainless steel meshed worktable offers easy operation and wear resistance.
- Crawler Belt Stability: A crawler correction device prevents belt misalignment during operation.
- High-Precision Motion System: The moving system utilizes Taiwan Hiwin linear guides and precision gears, driven by an advanced stepper motor to guarantee accuracy.
- Design Software Compatibility: Full support for design software like CAD, CorelDraw, and Photoshop, along with a user-friendly interface, caters directly to industry needs.
- Enhanced Safety: A fireproof glass window ensures operator safety during laser cutting.
Product parameters
| Table Size | 2000*3000mm or customized |
| Laser Power | 100W (80W, 130W, 150W, 180W, 220W and 300W for option) |
| Laser Type | Sealed CO2 laser tube |
| Laser Locating Precision | ≤±0.01mm |
| Cooling Type | Water Cooling |
| Max Moving Speed | 1600mm/s |
| Max Cutting Speed | 1400mm/s |
| Laser Output Control | 0-100% set by software |
| Controlling Software | RD Control system |
| Graphic Format Supported | DST, PLT, BMP, DXF, DWG, AI, LAS |
| Drive System | Stepper motor or servo optional |
| Auxiliary Equipments | Exhaust fan and air exhaust pipe |
| Power Supply | AC110V/220V±10%, 50H/60HZ |
| Working Environment | Temperature 0-45°C, Humidity 5-95% |
More about 2030 CO2 laser
Laser Head
CO2 precision laser head, suitable for cutting leather, cloth and other materials
Automatic feeding platform
Automatic feeding platform, with automatic feeding support, processed into rolls of fabric
Precision module structure
Automatic feeding platform, with automatic feeding support, processed into rolls of fabricHigher cutting accuracy and faster speed
Honeycomb work tableIt
Suit for soft material such as: cloth, leather, fabric etc.
CO2 laser tube
China best brand RECl laser tube with longer life and higher laser power.
Stepper motor
High precision step motor,could keep high precisionand provide more fast speed
Exhaust fan
It absorbs away the engraving or cutting dust andsmoke.
Water chiller
Water chiller protects the CO2 laser tube by watercooling when the machine is running form hightemperature. This can keep the laser tube lasts longer.
Samples
Industry-handling solutions
1. Advertising and Signage:
- Material Use: Commonly used to cut and engrave materials like acrylic, wood, and cardboard for creating signs, displays, and promotional materials.
- Capabilities: The machine can produce intricate designs and logos with high precision, making it ideal for custom signage.
2. Textile and Fashion Industry:
- Fabric Cutting: Efficiently cuts fabrics for clothing, accessories, and home textiles. It handles various materials such as cotton, leather, and synthetic fabrics.
- Customization: Allows for detailed engraving on fabrics, enhancing product uniqueness.
3. Woodworking and Furniture Manufacturing:
- Material Processing: Cuts and engraves wood-based materials like MDF, plywood, and solid wood for furniture production.
- Design Flexibility: Enables intricate patterns and designs to be created easily, suitable for both mass production and bespoke furniture.
4. Packaging Industry:
- Custom Packaging Solutions: Used to create packaging prototypes and custom boxes from cardboard and other materials.
- Efficiency: The precision cutting minimizes material waste, making it cost-effective for packaging solutions.
5. Crafting and DIY Projects:
- Hobbyist Use: Popular among crafters for creating personalized items such as gifts, home decor, and educational tools.
- Material Variety: Capable of working with a wide range of materials including paper, leather, and plastics.
6. Industrial Manufacturing:
- Component Production: Used in manufacturing processes to cut parts from various non-metallic materials quickly.
- High Volume Production: Suitable for both small batch runs and large-scale production environments.
Contact us
Contact us for more information, for scheduling a demonstration, and for anything else you might like to know about laser cutting.
