TRUSTER CNC Carbon Fiber Pre-impregnated Fabric Cutting Machine can cut various carbon fiber composite materials: carbon fiber dry fabric, carbon fiber prepreg fabric, Kevlar fabric, TPU base film, glass fiber prepreg fabric, carbon fiber cured panels, epoxy resin panels, polyester fiber sound-absorbing panels, and is widely used in aerospace manufacturing, shipbuilding, the automotive industry, sports equipment, medical devices, electronics and communications, protective gear, new energy, and other industries.
These three models are more suitable for cutting carbon fiber prepreg fabrics/Kevlar fabrics, without wasting any carbon fiber material during the cutting process: no pulling, no burning, no wear, and no expansion, ensuring the integrity of your expensive materials. The cold cutting method prevents the material from producing any smoke or harmful gases, protecting the health of the operator.

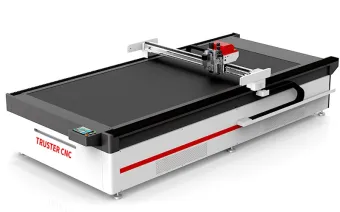

Fixed table design, suitable for cutting carbon fiber curing boards, epoxy resin boards, and other medium-hardness carbon fiber composite materials.
Standard automatic feeding system, paired with feeding rack, multi-layer feeding, multi-layer cutting, suitable for cutting flexible carbon fiber materials.
Extra-large format + automatic feeding system, capable of cutting long-format carbon fiber prepreg fabrics/Kevlar fabrics in one go, ensuring precision in multi-layer cutting.
Machine Model | Fixed Table Top Carbon Fiber Prepreg Fabric Cutter | Automatic Feeding Carbon Fiber Prepreg Fabric Cutter | Large-format Carbon Fiber Prepreg Fabric Cutter |
Price | $8500 – $15000 | $9500 – $15000 | $19000 – $35000 |
Suitable for cutting 0.1mm-25mm carbon fiber prepreg/dry cloth, glass fiber prepreg.
Suitable for cutting 0.1mm-5mm carbon fiber cured boards and epoxy resin boards.
Suitable for cutting carbon fiber fabrics ranging from 5mm to 28mm (subject to the actual material being cut).
Suitable for cutting 0.1mm-1mm TPU/base film and other film-like carbon fiber materials
CNC Carbon Fiber Prepreg Fabric Cutter | CO₂ Laser Cutting Machine | |
Cutting Method | Direct contact with the material through mechanical physical cutting with high-frequency vibrating blades. | Non-contact thermal cutting by melting and vaporizing materials using a high-energy carbon dioxide laser beam. |
Cutting Quality | Smooth cutting edges without burn marks, no heat impact, maintaining the integrity of the carbon fiber structure, no material delamination or fiber breakage. | Prone to heat-affected zones, which may cause material delamination, fiber damage, and thermal deformation. |
Material Adaptability | Suitable for multi-layer, varying thickness carbon fiber and flexible composite materials, cutting depth can be precisely controlled through programming. | Suitable for cutting thin materials and complex details; cutting efficiency decreases for thick plates; heat-sensitive substrates are easily damaged. |
Production Efficiency | Mechanical cutting is fast, supports mass production, and is suitable for complex irregular shapes and multi-layer cutting. | Thicker carbon fiber plates have limited cutting speeds. |
Equipment Maintenance | Low maintenance costs, easy tool replacement, stable equipment structure. | Laser and optical systems are expensive to maintain and require regular calibration and replacement of laser components. |
Environmental Protection and Safety | No smoke, no odor, no harmful gas emissions. | The cutting process generates smoke, dust, and odors, which are harmful to the health of operators. Ventilation and safety precautions must be provided. |
TRUSTER CNC carbon fiber composite cutting machines are favored by many overseas customers for their high-precision cutting capabilities and ease of operation. They are widely used in aerospace manufacturing (aircraft wings, fuselage components, interior parts), automotive industry (body components, car bodies), shipbuilding (ship components, ship propellers), sports equipment (bicycle frames, tennis rackets, golf clubs), new energy industry (wind turbine blades), medical industry (orthopedic devices, wheelchairs, rehabilitation equipment), and protective gear (protective suits, fire-resistant clothing).
Model | Fixed table top carbon fiber prepreg fabric cutter | Automatic feeding carbon fiber prepreg fabric cutter | Large-format carbon fiber prepreg fabric cutter |
Working Area | 6090 / 7010 / 1520 / 1625 | 6090 / 7010 / 1520 / 1625 | 1520 / 2050 / 2060 / 3060 / 3333 |
Max. Cutting Speed | 0–2000mm/s | ||
Cutting Thickness | ≦50mm | ||
Air Pressure Supply | 0.6–0.8MPA | ||
Cutting Accuracy | ±0.1mm | ||
Repeatability Positioning Accuracy | ±0.01mm | ||
Material Fixation | 5.5KW/7.5KW/9KW/12KW Vacuum Pump Zone Adsorption | ||
Transmission Port | Ethernet Port | ||
Working Power Supply | AC110V/220V/380V/3P 50HZ 60HZ (Optional) | ||
Total Power | ≤21KW, Standby state 0.45KW | ||
Safety Device | Physical Collision Prevention Mechanism + Infrared Sensor System | ||
Positioning Device | Laser + CCD Camera + Projector | ||
Transmission System | Panasonic Servo Motors, High-performance Drives, Precision Reducers, High-precision Linear Guides, Precision Gear Rack And Pinion Transmission Structures | ||
Cutting Tool | Oscillating Knife, Pneumatic Knife, Round Knife, Drag Knife | ||
Operating Temperature | 0°C–40°C | ||
Control Panel | Multilingual LCD touch screen (supports English, French, German, Hindi, Russian, Italian, Spanish, Korean, etc.) | ||
Drawing Software | Nesting Software,AUTOCAD, CORELDRAW, PGM, BOKE, GERBER, ETC | ||
Machine Support Format | AI, PLT, DXF, DST, DSB, EPS, DATNC, V CUT | ||
Work Environment | Temperature: -10°C to 40°C, Humidity: 20%–80% RH | ||
Application Material | Carbon Fiber Prepreg Fabric, Glass Fiber Prepreg/Dry Fabric, Carbon Fiber Cured Board, TPU/Base Film, Epoxy Resin Board, Carbon Fiber Reinforced Plastic | ||
TRUSTER CNC has over 16 years of industry experience and is an expert in the field of CNC equipment, as well as a trusted business partner. No matter what industry you are in, we can provide you with the right products.
Don’t settle for average when it comes to your digital cutting machine.
Your business deserves a high-performance leather cutting solution.
Schedule a one-on-one session with our expert today and get personalized guidance—absolutely free. Discover smarter, faster, and more efficient ways to cut leather!
From the moment we receive your order, you become our most valued customer. Our technical team will work closely with you to design a digital cutting machine tailored to your specific needs and budget—ensuring you receive a solution that offers exceptional value for money.
Details make the difference. From component selection to machine assembly and final testing, we leave no detail overlooked. Every linear guide rail, knife holder, and machine frame is precisely measured using high-accuracy instruments to ensure the X/Y/Z axes maintain exact alignment.
To ensure the cutting accuracy of your machine, we will conduct actual cutting accuracy tests on your machine after installation. During the testing process, we will repeatedly cut the same pattern at different positions on the workbench to comprehensively verify the stability and cutting accuracy of the equipment.
1、All precision components are individually wrapped in bubble film and placed in storage boxes.
2、All linear guides and racks are coated with protective oil to maintain precision.
3、The beam is disassembled and securely fixed on a bracket to prevent collisions.
4、The entire machine is first covered with bubble wrap and then tightly wrapped with plastic film for pressure and moisture protection.
5、A square wooden crate with V-shaped fixed feet is used for packaging to prevent the machine from shifting during transport.
6、The bottom of the wooden crate is reinforced with steel supports, making it easy for forklifts to load and unload.
We maintain long-term partnerships with several experienced and reliable international logistics companies, ensuring stable and efficient shipping services. All packaging is designed to meet international export standards.
We provide full tracking throughout the shipping process to guarantee that the machine remains dry, intact, and free from damage during long-distance transport.
1、Full machine warranty for 5 years (excluding consumables and man-made damage)
2、10 free blades included
3、Refer a customer and get an extra 1-year warranty extension plus a discount on future purchases (including accessories)
4、During the warranty period, any damaged part under $500 will be replaced and shipped to you for free
5、After the warranty expires, we’ll continue to repair your machine for free—you only cover the shipping cost
Here, you can see our products in person—you can touch them, examine every detail up close, and even operate the machines to see how they work. You’ll also have the opportunity to communicate face-to-face with our technical team to address any concerns you may have. If you’re satisfied, you can place your order on the spot.
If you have any other questions, please send us an email immediately.
Yes. The oscillating knife can be used to cut dry carbon cloth, and the circular knife can be used to cut prepreg.
No. Our cutting tools are made of tungsten steel, which is extremely sharp and durable, with a cutting speed of up to 2000 mm/s, so there will be no fraying.
No. The high-power 400W oscillating knife uses high-frequency micro-vibrations and sharp blades to cut at high speed, greatly reducing the destructive force of cutting on the layers and effectively preventing delamination.
Yes. Our high-power oscillating knife can be used to cut carbon fiber cured sheets and epoxy resin sheets up to 8 mm thick.
They are widely used in aerospace, automotive, wind power, shipbuilding, and other fields.
Yes. It can be used with a feed rack to achieve multi-layer automatic feeding and multi-layer cutting.
Yes. Our large-format CNC oscillating knife cutting machine can cut flexible materials longer than 3 meters. If you need to cut carbon fiber composites of greater length, we can customize the machine dimensions according to your requirements.
