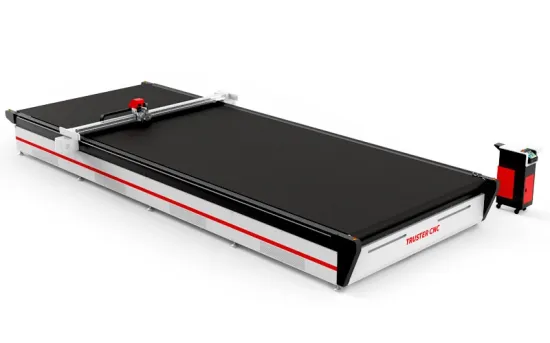

The custom large-format digital cutting machine features a high-strength, high-precision frame structure to ensure stable performance during large-scale processing and effectively prevent cutting errors caused by machine vibration.
It is primarily used for cutting oversized home furnishing materials, such as curtains and long-length fabrics, enabling one-time forming and significantly boosting production efficiency.
A custom large-format digital cutting machine typically features a wider and longer working table compared to standard models. Its most distinctive feature is the ability to customize the ultra-large working table based on the customer’s specific requirements, with lengths reaching up to 16,000 mm or even 18,000 mm. When cutting oversized materials such as curtains, long fabric rolls, or wide-format sheet materials, this machine delivers superior results while maintaining high cutting precision.
The worktable is made of high-strength aerospace-grade aluminum, offering an excellent strength-to-weight ratio, high resistance to deformation, and strong corrosion resistance. The entire surface is evenly distributed with threaded holes, each equipped with a precision adjustable screw.
By rotating these screws, micron-level height adjustments can be made in specific areas to correct any unevenness caused during transportation, installation, or use. There’s no need to replace the entire panel or add extra padding—ideal flatness can be quickly restored through multi-point screw fine-tuning.
The positioning light system designed for the custom large-format digital cutting machine serves as an alignment aid during material placement. It projects a straight line onto the worktable surface to help ensure that the material is aligned perpendicular or parallel to the table edge. This allows operators to quickly position and calibrate the material edges accurately.
The system is especially useful when cutting large-format or long-roll materials—such as curtain fabric, banner fabric, or carpets—where even slight misalignment can result in cutting errors. The positioning light helps detect skewing, twisting, or misplacement early for timely correction.
The high-precision linear guide system is one of the core transmission structures that enables high-speed, high-accuracy, and high-stability cutting performance. It features industrial-grade linear guides and sliders that maintain smooth toolhead movement even during high-speed operation, effectively preventing skipping or vibration.
Designed for low-friction operation under heavy loads, the guide system ensures stable X/Y-axis motion of the cutting head. Paired with a precision helical rack laid parallel to the guide, the system is driven by a servo motor and reducer for accurate displacement and rapid response. The guide surface undergoes hardening and grinding treatments for superior wear resistance and extended service life.
Due to the large overall dimensions and extended length of custom large-format digital cutting machines, the worktable typically adopts a modular assembly structure to fit within standard shipping container sizes. As a result, the base of the machine is equipped with heavy-duty swivel casters.
After delivery, customers can easily move each module to the designated location for docking and assembly using the casters—no lifting equipment required. A single person can handle the relocation and positioning, significantly reducing installation complexity and cost. The casters feature rubber or polyurethane-coated wheels, ensuring smooth, quiet movement without scratches, while protecting the floor surface.
The drag chain houses essential components such as power cables, signal wires, servo lines, and air tubes required for the machine’s multi-axis motion. It protects these cables from damage caused by pulling, friction, tangling, or external impact during machine operation.
As the cutting head and beam move at high speed, the drag chain moves smoothly along the designated path, ensuring the cables and tubes follow a controlled trajectory—preventing issues like dragging or entanglement. By minimizing sharp bends and random tugs, the drag chain significantly reduces the risk of cable fatigue and damage, thereby extending the overall service life of the components.
In custom large-format cutting machines, felt conveyor lengths often reach 10 meters or more, making it difficult for the main drive alone to maintain stable traction. The U-axis motor provides additional power to work in tandem with the main feeding motor, ensuring smooth and synchronized movement of the felt. It drives the felt roller via a synchronous belt linkage, maintaining consistent tension and level alignment of the felt.
This helps prevent material distortion caused by surface unevenness or felt undulation, thereby improving cutting accuracy. By sharing the load with the main drive, the U-axis motor reduces wear and overheating of the main motor under prolonged heavy-duty operation, ultimately extending the machine’s service life.
During the assembly process of the custom large-format digital cutting machine, each step follows a strict standardized workflow, closely supervised by experienced technicians. From the installation of precision guide rails to the calibration of tool heads and motors, no detail is overlooked. Installation personnel utilize professional tools to repeatedly test and fine-tune the system, ensuring structural stability, smooth transmission, and accurate tool alignment—maximizing the machine’s long-term precision and efficiency.
All core components are installed precisely according to technical drawings and parameters. The electrical wiring layout is handled and inspected by certified electricians to guarantee system stability and operational safety. This combination of standardized and professional assembly ensures that the delivered machine is ready for immediate use, offering clients a reliable, high-quality solution capable of handling large-format, high-intensity cutting tasks with confidence.
The custom large-format digital cutting machine is especially well-suited for cutting a wide range of flexible and composite materials, including carpets, garment fabrics, composite materials, acoustic insulation, home textiles, and leather. Equipped with a high-precision motion control system and a multi-functional tool combination, the machine ensures not only fast cutting but also clean edges without fraying or deformation.
For thick and heavy materials like carpets, the machine delivers powerful cutting performance. When processing garment and home decor fabrics, it achieves smooth and damage-free edges, enhancing product quality. For multilayered and variably dense materials such as composites and acoustic insulation, the cutting depth and pressure can be precisely adjusted to ensure consistent and stable results. When working with high-value materials like leather, the machine performs with exceptional accuracy, minimizing waste.
The custom large-format digital cutting machine is primarily used in the carpet manufacturing industry, garment production, composite materials, acoustic insulation, home furnishing, and leather manufacturing sectors. With a customizable worktable length of up to 18,000 mm, it is particularly ideal for cutting long-format roll materials without frequent material changes, significantly reducing manual intervention.
Thanks to its intelligent control system and flexible tool configuration, this cutting machine not only enhances automation across industries but also delivers outstanding performance in boosting productivity, lowering operational costs, and ensuring high cutting quality.
Can the custom large-format digital cutting machine be equipped with a large CCD, small CCD, and projector?
Yes, it can. If your materials have complex patterns, diverse shapes that need to be cut, or include high-value genuine leather that requires defect avoidance for maximum material utilization, you can absolutely choose to equip the machine with a large CCD, small CCD, and projector—especially if your budget allows it.
Can the machine still maintain accuracy with an extra-long custom worktable?
Absolutely. Every machine undergoes precision calibration steps such as gantry milling, surface leveling with leveling tools, and hole-by-hole fine adjustments. After assembly, each unit is subjected to rigorous testing. We do not deliver any machine that fails to meet strict quality standards.
What are the differences between a custom large-format digital cutting machine and a standard-size cutting machine? What are the main advantages?
The key distinction of the custom large-format digital cutter lies in its ultra-large, tailor-made worktable—far larger than standard models.
Seamless processing of oversized materials: It can accommodate and cut full-width or full-length rolls and sheets—such as curtain fabrics, wide-format textiles, or industrial fabrics—in one go, eliminating the need for sectioned cutting and post-process alignment. This significantly reduces labor and potential errors.
Increased production efficiency: For large materials, it eliminates repeated loading and alignment, greatly improving production speed and workflow efficiency.
How should this machine be maintained for long-term, stable performance?
