Double Beam Digital Cutting Machine Suppliers

The Double Beam Digital Cutting Machine features a tool holder that allows flexible tool combinations, enabling quick and easy tool changes for different materials. It is suitable for cutting various flexible materials, non-metallic materials, and other composite materials, delivering precise cutting of complex patterns.

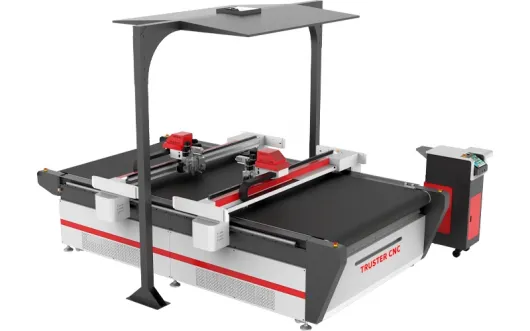

Double Beam Digital Cutting Machine

Working Size: 1600×2500mm
Optional Sizes: 1625 / 1635 / 1640 / 2040 / 2060 / 3040 (custom sizes supported)
Cutting Depth: ≤50mm (varies by material); multilayer materials compressed to 0–30mm, foam < 100mm
Max Cutting Speed: 0–2000mm/s

CNC Oscillating Knife Cutter With Display Panel

Screen-Projection Cutting System: Displays operator steps more intuitively to prevent operational errors
Visual Layout Optimization: Enables clearer verification of layout rationality and precise alignment
Work Orders and Production Data: Real-time display of current work order information (order number, material type/thickness, batch number), material utilization, and cutting time
Positioning and Calibration Assistance: Dual-projection system automatically aligns cuts to stripes and grids, ensuring consistent stripe and grid positioning and orientation for every cut piece. For certain fabrics, this can reduce material waste by 3%–5%

Introduction

The Double Beam Digital Cutting Machine adopts a dual-gantry structural design, with each gantry equipped with a tool holder. This allows the machine to perform multiple cutting tasks simultaneously. The two tool holders can carry out different cutting operations at the same time on the same material, enabling the cutting of various shapes and sizes in parallel. This significantly improves production efficiency, shortens delivery time, and enhances overall business profitability.

The Double Beam Digital Cutting Machine is primarily used for cutting materials such as foam, sponge, carpet, cotton, leather, linings, PVC, acoustic cotton, photo paper, KT board, car stickers, rubber, fabric, cartons, textiles, automotive floor mats, leather car seats, and other composite flexible materials. It is widely applied across industries including apparel, footwear, home goods, sports equipment, packaging, home textiles, interior decoration, automotive, and advertising.

Double beam digital cutting machine parameters

Total Power: ≤11KW, Standby state 0.45KW
Machine Color: Standard white grey or white black (Optional)
HS Code: 8479899990
Operating Temperature: 0°C–40°C
Drawing Software: AUTOCAD, CORELDRAW, PGM, BOKE, GERBER, ETC
Machine Support Format: AI, PLT, DXF, DST, DSB, EPS, DATNC, V CUT
Work Environment: Temperature: -10°C to 40°C, Humidity: 20%–80% RH
Application Material:Foam, sponge, cotton, leather, PVC, sound-absorbing cotton, photo paper, KT board, car stickers, rubber, cloth, carton, and other composite flexible materials

Double Beam Digital Cutting Machine Configuration Advantages

Universal Knife Holder Design

This oscillating knife module features a dual vibration damping block system, effectively balancing the unbalanced vibration caused by the eccentric shaft rotation to achieve stable vibration reduction. When mounted on a knife holder with a rotating shaft, the blade is capable of 360-degree rotation, allowing flexible multi-angle cutting for complex paths.

The unit is equipped with a built-in lubrication device, enabling easy injection of lubricant to the mandrel, which reduces friction, delays blade wear, and extends the service life of the vibrating knife. Additionally, it includes a gas cooling interface for real-time air cooling of the knife, helping to control temperature during prolonged operation and ensuring cutting stability.

Complete Range Of Cutting Tools

The TRUSTER CNC cutting system supports full cutting, kiss cutting, V-groove cutting, creasing, and marking processes, and provides compatible tools for any material and shape.

TROCEN Intelligent Control System

The TROCEN control system features a user-friendly human-machine interface with simple operation and supports functions such as dynamic trajectory display and return-to-position. It offers multifunctional integration, intelligent control, high compatibility, and rich expandability.

Additionally, it supports various cutting processes and materials, enhances cutting efficiency and precision, and ensures high reliability and stability. It is widely used in high-precision cutting applications such as logos and patterns, significantly improving production efficiency and product quality.

Tabletop Height Compensation Function

The table height compensation function automatically adjusts via software to correct uneven cutting depth caused by discrepancies between the table surface and tool height, ensuring perfect cutting results.

Infrared Safety Device

Equipped with an infrared auto-sensing device and emergency stop switches at all four corners, this safety system provides a secure working environment and ensures maximum operator protection during high-speed machine operation.

Automatic Feeding System

Innovatively designed with an integrated feeding and cutting structure, the machine supports a single feeding length of up to 1800mm, enhancing feeding efficiency and enabling larger cutting sizes for greater production capacity.

Rack And Pinion

Used in combination with linear guide rails, it features precise positioning, smooth operation, strong load-bearing capacity, and high transmission efficiency. It is easy to assemble, install, maintain, and replace. The rack teeth are heat-treated for enhanced wear resistance and durability, ensuring long-term stable operation of the equipment.

Dorna/Panasonic Servo Motor

The TRUSTER CNC Double Beam Digital Cutting Machine can be equipped with either the domestic Dorna servo motor or the Japanese Panasonic servo motor. The Dorna servo motor offers high precision, strong reliability, multi-functionality, and intelligent features, including smart vibration suppression and excellent adaptability to various environments. The Japanese Panasonic servo motor, known for its high precision, lightweight design, and environmental resistance, features the MINAS-A5 series which significantly reduces vibration and enhances control accuracy and efficiency by increasing rotor poles and integrating built-in filters.

If you have a limited budget, the domestic Dorna servo motor is a cost-effective choice. If your budget allows, the Japanese Panasonic servo motor is a premium option.

Features of the Double Beam Cutting Machine

Large CCD Intelligent Recognition System

Since flexible materials may deform due to stretching or other factors, the original outlines cannot be used for precise cutting of actual patterns. Therefore, we use a high-precision camera for real-time imaging and contour extraction, enabling accurate recognition and reading of the workpiece’s outline for precise positioning. This is especially suitable for the advertising printing and garment industries.

Projection Positioning System

This system can project cutting patterns onto the working table, allowing users to quickly adjust sizes. Users can also place irregular materials within the projection area for alignment, significantly improving material utilization.

High-Efficiency Dual-Gantry Processing

The dual gantries can simultaneously process their own individual patterns, making them suitable for handling different designs at the same time. They are not intended for processing the same pattern simultaneously. Each gantry operates independently, with no limitations on pattern types, and they do not interfere with each other during operation.

Double Beam Digital Cutting Machine Detail Display

The TRUSTER CNC Double Beam Digital Cutting Machine exemplifies the integration of efficiency and intelligence in its detailed design. Equipped with a high-precision CCD camera, the system enables accurate positioning and automatic recognition, enhancing cutting accuracy. A top-mounted projector can display cutting paths or contours directly onto the material surface, assisting operators with quick alignment.

The dual-beam structure enhances machine stability and cutting efficiency, making it ideal for high-performance processing of large-format materials. The oscillating tool head supports efficient cutting of various materials, meeting diverse processing needs.

Emergency stop buttons are positioned for easy access to ensure operational safety. The user-friendly control system features a clean, intuitive interface that simplifies operation and parameter adjustments—significantly improving both production efficiency and user experience.

More About the Double Beam Digital Cutting Machine

The Double Beam Digital Cutting Machine is equipped with an independent control system that can automatically feed roll materials (such as fabrics or sheets) into the cutting area. This system ensures feeding accuracy and consistency, significantly reducing the risk of human error and improving production efficiency.

High-Speed Motion Control System
Utilizes a high-end six-axis motion control system with easy maintenance, high reliability, and excellent cost performance. It supports custom programming based on user requirements and allows remote upgrades.

Independent Motion Control Card
The controller has evolved from the traditional plug-in card format to a high-performance integrated circuit controller, compatible with any standard computer (including laptops), completely eliminating the risk of system failure due to computer crashes.
High Efficiency & Labor Saving
Digitized cutting allows general workers to be trained within two hours. With intelligent nesting, it saves over 10% in material compared to manual layout.
Efficient Transmission
Features precision Taiwan linear guides with ±0.02mm accuracy and 7-level precision rack and pinion transmission, offering strong load capacity and support for continuous production.
High-Quality Structure
Supports automatic material feeding, cutting, and unloading. Custom solutions are available, suitable for cutting hundreds of different materials.
Physical Cutting
Custom models are dustproof, anti-static, smoke-free, odorless, and do not alter the material’s properties.
Strong and Efficient Suction
Energy-saving zoned vacuum adsorption system ensures optimal material fixation. The machine base uses an integrated ground aluminum honeycomb panel for excellent airflow, high precision, long service life, and deformation resistance.
Workplace Safety
Equipped with safety systems—when a hand enters the infrared detection area, the machine stops automatically. Emergency stop switches are placed around the machine to ensure 360° safety without blind spots.

Cutting Sample Display

Double Beam Digital Cutting Machine Maintenance Manual

Everyday

Maintenance items	Illustration
Clean the knife head	Wipe it with clean cotton cloth
Clean the surface of the machine	Clean with air guns and rags
Check the drag chain slot	The drag chain slot is free of sundries and noise
Check the operation in the X and Y directions	The drag chain slot is free of sundries and noise
Clean the x, Y rails and add grease	Wipe rails with a cleaning cloth and apply new grease
Check the cutting tools	Use an alcohol rag to remove residue from the tool
Check the working of knife apron and the cutting tools	Before starting work, check whether the knife apron and the cutting tools are operate normally
Cheak the oil and water inside the air compressor	Check it by adjusting the drain screw of the air compressor
Cheak the total pressure value	The standard air pressure is 0.6Mpa, if have the pneumatic knife, the pressure is 0.8Mpa
Cheak air pressure valve	Confirm no water in air pressure valve
Cheak screws on the tool apron and knife head	Confirm no screws loose or lost
Clear the surface of felt	Use pneumatic gun to clean, ensure there is no sundries or bumps on the surface

Every week

Maintenance items	Illustration
Check the X and Y origin sensors	Confirm the sensors are no loose and no dust
Check bearings using conditions	Confirm no bearings loose
Checking the connection of every wire	Confirm whether the wires are connected firmly
Dust cleaning inside the electrical box	Clean with vacuum cleaner

Every month

Maintenance items	Illustration
Checking the synchronous belt	Confirm the tightness and wear of the synchronous belt
Confirm the usage of consumables	Confirm the usage of consumables
Check the leakage switch	Manually press the leakage switch to check if it protects normally

Applications of Double Beam Digital Cutting Machine in Various Industries

Advertising and packaging industry

Application: Oscillating knife cutting machine can be used to quickly produce various complex advertising graphics, POP display racks, packaging samples, labels, stickers, etc.
Value: Achieve precise and fast customized cutting to meet customers’ needs for complex patterns and personalized designs, shorten product development cycles, and increase the speed of responding to market changes.

Composite materials industry

Application: Cutting high-performance composite materials such as carbon fiber, glass fiber, and prepreg.
Value: Avoid problems such as delamination and thermal damage that may be caused by traditional cutting methods to ensure material performance; accurately control shape and size to meet the strict requirements of lightweight and high-strength structural parts in aerospace, wind turbine blades, sports equipment and other fields.

Printing and packaging industry

Application: Making paper boxes, paper bags, corrugated cardboard samples, and cutting of various paper and film materials.
Value: Simplify the sample production process and accelerate the design verification and market promotion of new products; precise cutting improves packaging quality and enhances brand image; digital production processes help to achieve inventory management and rapid order response.

Model making and craft gift industry

Application: Cutting soft materials such as foam, cork, PVC, etc., making architectural models, handicrafts, exhibition props, etc.
Value: Providing fine and complex cutting capabilities to achieve the perfect presentation of creative designs; improving production efficiency and meeting short delivery and personalized needs.

Frequently Asked Questions

What are the structural advantages of the Double Beam Digital Cutting Machine?

The double beam structure offers high rigidity, effectively reducing vibration and deformation during processing. This ensures cutting accuracy and repeatability, making it especially suitable for high-precision machining of large-format and complex workpieces.

How is the cutting accuracy of the Double Beam Digital Cutting Machine ensured?

The machine uses a high-precision CCD camera positioning system along with a stable double beam structure to guarantee precise cutting paths and achieve fine, consistent cutting results.

Is the Double Beam Digital Cutting Machine difficult to maintain?

TRUSTER CNC machines are designed with ease of maintenance in mind. Key components like linear guides and racks are wear-resistant. Routine maintenance requires only regular cleaning and lubrication, making it simple and convenient. Please refer to the maintenance manual above for details.

Is the machine difficult to operate? Does it require professional training?

No need to worry. Once you receive the machine, we will provide detailed operating instructions and videos. Our team will assist you online with installation and setup. Additionally, we will create a dedicated after-sales support group for you, where you can ask any questions. We offer 24/7 real-time support without language barriers until you are fully confident in using the machine independently.

Is the machine’s control interface user-friendly?

The TRUSTER CNC digital cutting machine uses the Ruida control system, which supports multiple languages and various file formats. The interface is clean and intuitive, making it easy to operate. With minimal training, your staff can quickly become proficient, improving overall efficiency.
