CNC Gasket Cutting Machine
Stop using traditional dies to cut gaskets — TRUSTER CNC brings you a revolutionary cutting solution
TRUSTER CNC gasket cutting machines can cut a wide range of non-metallic gasket materials, including rubber gaskets, silicone gaskets, graphite gaskets, asbestos/non-asbestos gaskets, PTFE gaskets, paper gaskets, cork rubber gaskets, and carbon fiber gaskets—offering you the optimal high-precision gasket cutting solution.
Are you facing these problems when cutting gaskets?
- Traditional manual cutting has low precision, slow speed, and high material waste
- High mold costs and frequent style changes make it uneconomical
- Diverse gasket materials (varying in hardness and thickness) are difficult to handle uniformly
- Requires more workers, leading to high labor costs
Then you need a CNC gasket cutting machine
- Eliminate 100% of mold costs with flexible cutting of any shape
- Automatic nesting saves material and handles various materials with one machine
- High efficiency and precision, ideal for both mass and custom production
- 5–6 times faster than manual cutting, saving up to 80% in labor costs

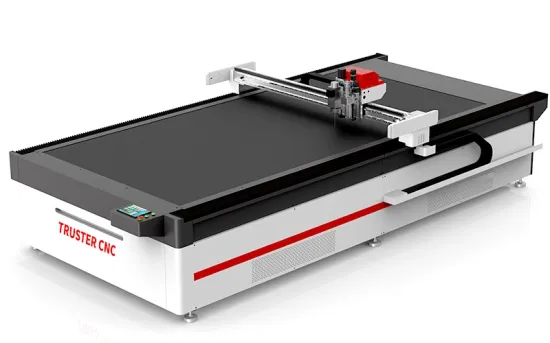

Fixed table CNC gasket cutting machine
If you are cutting harder gasket materials, you can choose the following fixed table CNC gasket cutting machine
- Fixed working table ensures stable cutting
- Equipped with nesting system for maximum material savings
- Capable of cutting various irregular gasket shapes
- Compatible with a wide range of non-metallic gasket materials
- Ensures consistent cutting of required gasket shapes
- Supports simultaneous grooving, punching, and slotting
Automatic Feeding CNC Gasket Cutting Machine
If you are cutting flexible sheet gasket material, you can choose from the following two machines
Supports Precise Cutting Of Various Gasket Materials
3mm PTFE
20mm Rubber
10mm Silicone
1mm Graphite
5mm Rubber
3mm Ceramic Fiber
Cutting Parameters for Different Gasket Materials
Gasket Type | Cutting Thickness | Cutting Speed |
Rubber Gasket | 2mm | 330mm/s |
3mm-5mm | 280mm/s | |
8mm-10mm | 120mm/s | |
15mm-20mm | 60mm/s | |
Silicone Gasket | 2mm | 190mm/s |
5mm | 90mm/s | |
8mm | 50mm/s | |
10mm | 25mm/s | |
Graphite Gasket | 1.5mm-2mm | 300mm/s |
3mm | 190mm/s | |
5mm | 180mm/s | |
PTFE Gasket | 1mm | 210mm/s |
2mm | 170mm/s | |
3mm | 160mm/s | |
5mm | 100mm/s | |
Ceramic Fiber | 1mm | 200mm/s |
1.5mm | 150mm/s | |
2mm | 130mm/s | |
5mm | 100mm/s |
*The above data is for reference only. Actual cutting results may vary depending on material thickness, hardness, and other factors.
Various Cutting Tools
Meet Your Needs
Oscillating Knife
Cuts 1–15mm rubber, 1–5mm asbestos, 1–5mm PTFE, 1–10mm silicone, cork, graphite, foam gaskets, etc.
- Amplitude: 1mm
- Motor Power: 80W
- Vibration Frequency (RPM): 0~18,000 times/min
Pneumatic Knife
Cuts 10–50mm EVA foam gaskets, 10–30mm EPE foam gaskets, 10–25mm silicone foam gaskets, 10–25mm insulation cotton gaskets, 20–40mm compressed felt gaskets, etc.
- Amplitude: 7–10mm
- Working Air Pressure (MPa): ≤ 0.7
- Vibration Frequency (RPM): 0~15,000 times/min
Drag Knife
Suitable for thin film gasket materials: 0.5–3mm PVC gaskets, 0.3–3mm PE film gaskets, 0.3–2mm polyester film gaskets, 1–3mm coated/kraft paper gaskets, 0.5–2mm adhesive gaskets.
Spindle Tool
Ideal for punching thicker and harder materials.
- Speed (rpm): < 60,000
- Motor power (W): 350
High-Power Servo Knife
Driven by a 400W high-power motor, suitable for cutting 1–50mm rubber, EVA, thick cardboard, and other harder materials.
Replaceable High-Power Servo Knife
Equipped with belt transmission and interchangeable blades; suitable for cutting 1–45mm felt, silicone, foam, and other softer materials.
Nesting Software
The powerful automatic nesting algorithm minimizes material waste by optimizing layout. For example, in gasket cutting, a sheet that originally produced 120 gaskets can be optimized to produce 135, increasing material utilization by approximately 12.5%.
Based on actual cutting tests conducted by the TRUSTER CNC technical team:
Assuming 300㎡ of rubber gasket material is cut per day, with the original utilization rate at 70%, the nesting system can improve it to around 80%.
- 300㎡ × 10% = 30㎡ material saved per day
- At a rubber cost of $10/㎡, that’s $300 saved daily
- Annual savings can exceed $75,000+
Technical parameters related to CNC gasket cutting machine
Model | TO Series |
Optional Size | 6090 / 7010 / 1520 / 1625 (support/customize size) |
Max. Cutting Speed | 0–2000mm/s |
Cutting Thickness | ≦50mm |
Air Pressure Supply | 0.6–0.8MPA |
Cutting Accuracy | ±0.1mm |
Repeatability Positioning Accuracy | ±0.01mm |
Cutting Circle Diameter | customize size |
Material Fixation | 5.5KW/7.5KW/9KW/12KW Vacuum Pump Zone Adsorption |
Transmission Port | Ethernet Port |
Working Power Supply | AC110V/220V/380V/3P 50HZ 60HZ (Optional) |
Total Power | ≤21KW, Standby state 0.45KW |
Safety Device | Physical Collision Prevention Mechanism + Infrared Sensor System |
Positioning Device | Laser + CCD Camera + Projector |
Transmission System | Panasonic Servo Motors, High-performance Drives, Precision Reducers, High-precision Linear Guides, Precision Gear Rack And Pinion Transmission Structures |
Cutting Tool | Oscillating Knife, Pneumatic Knife, Drag Knife,Spindle Tool,High-Power Servo Knife,Replaceable High-Power Servo Knife |
Operating Temperature | 0°C–40°C |
Control Panel | Multilingual LCD touch screen (supports English, French, German, Hindi, Russian, Italian, Spanish, Korean, etc.) |
Drawing Software | Nesting Software,AUTOCAD, CORELDRAW, PGM, BOKE, GERBER, ETC |
Machine Support Format | AI, PLT, DXF, DST, DSB, EPS, DATNC, V CUT |
Work Environment | Temperature: -10°C to 40°C, Humidity: 20%–80% RH |
Application Material | rubber, asbestos, PTFE, silicone, cork, foam, felt, polyester film, adhesive, kraft paper, nylon |
TRUETER CNC Gasket Cutting Machine Price List
Machine Model | TO-7010 | TO-1010 | TO-1325 | TO-1625 | TO-1630 | TO-1635 |
Size | 700*1000mm | 1000*1000mm | 1300*2500mm | 1600*2500mm | 1600*3000mm | 1600*3500mm |
Price | $6800-$9800 | $7500-$11000 | $7800-$12000 | $7900-$12200 | $8000-$13000 | $8000-$15000 |
Customer reviews we have received
Truster CNC was great to work with. The sales person was professional. Her communication was quick and very knowledgeable. The CNC machine arrived in 40feet container and was packaged extremely well.
Aleks from Russia
I received machine last month,just back to my city and opened,till now just test cut,wow!it cut very well thanks i'm satisfied with my machine ,After-sales service is very timely，thanks crystal.
Denis from Argentina
First time i cut bad ,Truster CNC technical engineer helped me found problem and solution quickly,it's the upper part lens dirty,after i changed to new lens,now i cut good,reliable suppler,recommend to choose!
Joseph from Germany
Reliable supplier with good quality machine ,recommend to buy.
Antonio from Italy
Nice, good machine with strong package ,professional and quickly on after sale,it's worthy to choose.
Andrej from Slovakia
Machine is ok. We have started cutting some pieces. The performance is perfect. I appreciate your support.
Andrew from England
Get Your Exclusive Customized Service
Delivery Cycle: 7-15 Working Days
Free Sample Cutting Service
TRUSTER CNC has over 16 years of industry experience and is an expert in the field of CNC equipment, as well as a trusted business partner. No matter what industry you are in, we can provide you with the right products.
Don’t settle for average when it comes to your digital cutting machine.
Your business deserves a high-performance leather cutting solution.
Schedule a one-on-one session with our expert today and get personalized guidance—absolutely free. Discover smarter, faster, and more efficient ways to cut leather!
Your Trusted Expert in High-Precision Cutting
Tailored, All-in-One Solutions Designed Just for You
Tailored to Your Needs
From the moment we receive your order, you become our most valued customer. Our technical team will work closely with you to design a digital cutting machine tailored to your specific needs and budget—ensuring you receive a solution that offers exceptional value for money.
Precision Installation
Details make the difference. From component selection to machine assembly and final testing, we leave no detail overlooked. Every linear guide rail, knife holder, and machine frame is precisely measured using high-accuracy instruments to ensure the X/Y/Z axes maintain exact alignment.
Machine Accuracy Testing
To ensure the cutting accuracy of your machine, we will conduct actual cutting accuracy tests on your machine after installation. During the testing process, we will repeatedly cut the same pattern at different positions on the workbench to comprehensively verify the stability and cutting accuracy of the equipment.
How Is Your Machine Packaged and Shipped?
Shockproof, Drop-resistant, Moisture-proof
Machine Packaging
1、All precision components are individually wrapped in bubble film and placed in storage boxes.
2、All linear guides and racks are coated with protective oil to maintain precision.
3、The beam is disassembled and securely fixed on a bracket to prevent collisions.
4、The entire machine is first covered with bubble wrap and then tightly wrapped with plastic film for pressure and moisture protection.
5、A square wooden crate with V-shaped fixed feet is used for packaging to prevent the machine from shifting during transport.
6、The bottom of the wooden crate is reinforced with steel supports, making it easy for forklifts to load and unload.
Machine Transportation
Safe, Fast, Delivered Within 7–15 Working Days
We maintain long-term partnerships with several experienced and reliable international logistics companies, ensuring stable and efficient shipping services. All packaging is designed to meet international export standards.
We provide full tracking throughout the shipping process to guarantee that the machine remains dry, intact, and free from damage during long-distance transport.
Your Entitlement to Free After-Sales Services
Free Installation Guidance
- Detailed user manual and instructional videos
- Illustrated PDF documentation
- Direct phone support with technical staff
- Remote assistance via remote control
- Video call guidance
- On-site training and support available
5-Year Warranty
24/7 Online Support
1、Full machine warranty for 5 years (excluding consumables and man-made damage)
2、10 free blades included
3、Refer a customer and get an extra 1-year warranty extension plus a discount on future purchases (including accessories)
4、During the warranty period, any damaged part under $500 will be replaced and shipped to you for free
5、After the warranty expires, we’ll continue to repair your machine for free—you only cover the shipping cost
Welcome to Visit Our Factory
Here, you can see our products in person—you can touch them, examine every detail up close, and even operate the machines to see how they work. You’ll also have the opportunity to communicate face-to-face with our technical team to address any concerns you may have. If you’re satisfied, you can place your order on the spot.
Strong After Sales Service Team
Quality Assurance
Customer Collaboration Cases
10 Frequently Asked Questions
If you have any other questions, please send us an email immediately.
Can hard gasket materials be cut?
Yes. Our CNC gasket cutting machine can be equipped with a 400W high-power servo knife, specifically designed for cutting harder materials. It can cut rigid rubber materials up to 50mm thick.
What is the maximum cutting thickness?
Cutting thickness depends on the material and selected tool. Oscillating knives can cut up to 15mm, drag and pneumatic knives are suitable for thinner materials (≤5mm), and high-power servo knives can cut up to 50mm thick.
Can it cut irregular or custom-shaped gaskets?
Yes. Our digital system supports importing file formats such as DXF, AI, and PLT, making it compatible with various complex shapes.
Can gasket hole diameters be customized?
Yes. Simply provide your desired hole dimensions, and our technical team will customize the machine accordingly.
Will there be material waste during cutting?
No. The intelligent nesting system maximizes edge space usage, improving material utilization by 5–10% and minimizing waste.
Does the machine support remote maintenance or after-sales service?
Yes. We offer remote technical support for common issues and can also provide on-site installation and training services.
How do I know when to replace a worn blade?
If you notice rough edges, interrupted cuts, or inconsistent depth, it’s time to inspect for blade wear and replace it promptly to ensure quality.
Can the CNC gasket cutting machine cut other materials?
Yes. In addition to gaskets, it can cut leather, fabric, cardboard, foam, and other flexible materials.
What maintenance is required for the equipment?
Regularly clean the guide rails and vacuum system, check drive and sensor conditions, and lubricate moving parts to ensure stable operation.
What is the delivery time for the machine?
Typically 7–15 working days, depending on specific configuration and customization requirements.
