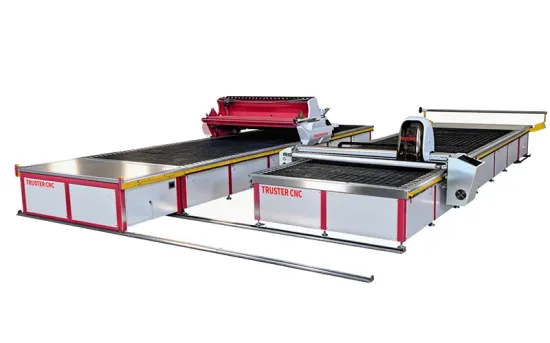

The TRUSTER CNC Multi-ply Automatic Fabric/Leather Cutting Machine features an integrated cutting and spreading design, enabling simultaneous operation of two workstations (spreading fabric on one side while cutting on the other). It can increase production efficiency by 25%, reduce labor costs by 60%, and minimize material waste by 20%, with a maximum cutting thickness of 110 mm (after compression). Four models are available, and machine dimensions can be customized to meet specific cutting requirements.
Maximum roll diameter: 500 mm (customizable width)
Maximum roll weight: 150 kg
Maximum drive speed: 100 m/min
Maximum spreading height: Single pull 230 mm / Double pull 200 mm (customizable height increase)
Cutting length：9600mm/18000mm
Machine speed(Max)：45m/min
Maximum cutting height (after adsorption)：110mm
Vibration frequency (rpm)：4000r/min
Air pressure flow(mpa)：0.55Mpa 160L/min
Compatible with both roll and sheet materials.
Applications: Apparel (T-shirts, jeans, down jackets), home textiles (curtains, sofa covers, bedding), industrial fabrics (tent fabric, car interior fabrics)
Features a modular split-frame design that allows for easy assembly and splicing. It significantly reduces transport difficulty and shipping costs, effortlessly solves the challenges of entering tight doorways or moving upstairs, and simplifies ongoing maintenance and repairs.
Highly cut- and wear-resistant with an extended lifespan, ensuring smoother blade movement while effectively protecting and extending tool life. It guarantees more even vacuum adsorption, safeguarding consistent cutting dimensions across multi-ply fabrics.
Crafted from high-hardness tungsten steel alloy, providing exceptional wear resistance and rigidity, capable of cutting through fabric up to 11cm thick.
Compatible with 0.3-4mm punching tools to meet various hole-drilling requirements.
Features diamond grinding wheel sets paired with high-strength drive belts to ensure precise blade sharpness.
Utilizes an industrial integrated touch-screen computer, offering flexible operability and robust anti-interference capability.
Delivers an air pressure flow of 0.55MPa at 160L/min, preventing fabric displacement and ensuring consistent cutting accuracy.
A high-efficiency, silent air compressor that provides a continuous and stable high-pressure air supply for all pneumatic components.
Product Model | TJ-1607 | TJ-1907 | TJ-2107 | TJ-2407(Customizable) |
Cutting width(mm) | 1600 | 1900 | 2100 | 2400 |
Cutting length(mm) | 9600 | 9600 | 9600 | 9600 |
Machine speed(Max)m/min | 45 | 45 | 45 | 45 |
Cutting height (after adsorption)mm | 70 | 90 | 110 | 110 |
Cutting method | Tool up and down reciprocating | |||
Sharpening method | Grinding wheel | |||
Air pressure flow(mpa) | 0.55Mpa 160L/min | |||
Data Format | R274D/ISO/CUT/NC/PLA/PLX | |||
Noise Control | <78 | |||
Equipment size (L-W) mm | Customized to customer needs | Customized to customer needs | Customized to customer needs | Customized to customer needs |
Equipment weight(KG) | Defined by length | Defined by length | Defined by length | Defined by length |
Vibration frequency (rpm) r/min | 4000 | 4000 | 4000 | 4000 |
Secondary coating device | Standard | Standard | Standard | Standard |
Cutter lock device | Optional | Optional | Optional | Optional |
Intelligent bed moving system | Optional | Optional | Optional | Optional |
Cooling system | Optional | Optional | Optional | Optional |
Knife smart device | none | none | none | none |
Cutter correction system | Standard | Standard | Standard | Standard |
Synchronous cutting and bed changing system | none | none | none | none |
Total power(KW) | 22/32 | |||
Clipped power supply (V/hz) | 220/50 | |||
Data connectivity | USB disk/network | |||
operating system | WINDOWS | |||
Relative temperature of working environment | 0°C-50°C | |||
Relative humidity of working environment | <90% non-condensing | |||
Device Model | TL6-160 | TL6-190 | TL6-210 | TL6-230 | TL6-260 | TL6-290(Customized width for home textiles) |
Spreading width | 1600mm | 1900mm | 2100mm | 2300mm | 2600mm | 2900mm |
Maximum cloth roll diameter | 500mm (customizable width) | |||||
Maximum roll weight | 150kg | |||||
Maximum drive speed | 100m/min | |||||
Maximum spreading height | Single pull 230mm/Double pull 200mm (customizable height increase) | |||||
Power | 1p/220v/50hz/2.2kw | |||||
Cutting width | 1830mm | 2130mm | 2330mm | 2530mm | 2830mm | 3130mm |
If you have any other questions, please send us an email immediately.
It utilizes a movable rail system to synchronize the automatic spreading machine with the CNC multi-ply cutter. While one bed is undergoing the automatic spreading process, the cutting head can traverse to the adjacent bed to perform high-speed cutting. This parallel workflow ensures zero idle time for both the spreading and cutting units, maximizing production efficiency.
The core advantage is extreme efficiency and space savings. This integrated design eliminates the need for multiple production lines (as traditional setups might require 2-3 separate spreading lines) by allowing seamless switching between beds. It removes production bottlenecks, increases output by up to 60%, minimizes factory floor space usage, and significantly reduces reliance on manual labor.
The system can cut virtually any fabric on the market (including Kevlar, carbon fiber, fiberglass, cotton, polyester, silk, Dyneema, Mylar, nylon, canvas, cashmere, and jacquard) as well as leather. Equipped with high-hardness tungsten steel alloy long-blade tooling, it maintains absolute precision while easily cutting through compressed fabric stacks of 7 cm to 11 cm in thickness.
Absolutely. The automatic spreading unit features a highly flexible feeding design that is fully compatible with both roll-fed and sheet-fed (folded) materials, allowing factories to switch between different fabric packaging types with ease.
Both worktables are equipped with a powerful vacuum adsorption system (0.55MPa, 160L/min) and utilize secondary vacuum-sealing (re-sealing areas after the cutting head passes) to prevent any fabric displacement. Furthermore, it features dynamic cutter compensation technology (Smart Knife), which automatically detects and compensates for fabric variations, ensuring perfect consistency from the top to the bottom ply.
The machine operates on a stable Windows OS via an industrial integrated touch-screen computer. It supports multiple data transmission methods (USB and network connectivity) and is fully compatible with global standard CAD data formats, including R274D, ISO, CUT, NC, PLA, and PLX.
You need not worry about shipping and installation. Although the system is substantial, the machine bed is designed with a modular, split-frame concept. The bed bodies and main frames can be disassembled and packaged independently for transport. This significantly reduces shipping and logistics costs while perfectly solving common challenges such as navigating narrow factory doors or moving equipment to different floor levels.
Yes, it is very easy to operate. The machine is equipped with a user-friendly, highly intuitive industrial touch-screen interface. It features robust anti-interference capabilities and a highly automated workflow—including features like smart knife sharpening and automated bed-switching tracking—allowing operators to manage production with the simple push of a button.
