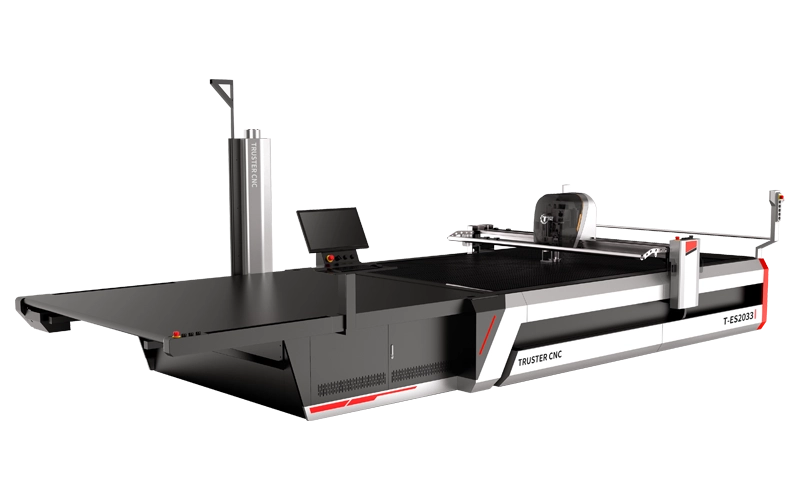

T-ES Automatic Multi-Ply Garment cutting machine
Features
The T-ES Automatic Multi-Ply Cutting System is engineered to deliver optimal solutions for high-volume production across diverse sectors including textiles, furniture, automotive interiors, luggage, and outdoor goods. T-ES excels at cutting soft materials with remarkable speed, precision, and intelligent automation. Its integrated Cloud Control Center features a robust data conversion module, guaranteeing seamless compatibility with leading CAD software. By offering strong technical support, T-ES empowers customers to transition from traditional manufacturing processes to fully automated production.
High-efficiency cutting head:
1. The maximum speed can reach 100m/min,
2. The maximum cutting speed can reach 9cm (after vacuum compression),
3. Greatly improve cutting efficiency,
4. Adopt micro-oil design to reduce oil pollution,
5. Compact cutting head design, more beautiful and easy to maintain.
Intelligent sharpening system:
1. Will not cause sawtooth damage to the cutting knife,
2. Extend the use time of the blade and reduce costs,
3. Easy to disassemble and replace, easy to learn and understand,
4. Choose different specifications of sanding belts according to different fabrics,
5. The sharpening efficiency is significantly improved compared with the non-sanding belt sharpening structure,
6. It can be set to only lift and sharpen the knife at the corner to ensure the cutting quality.
Product parameters
| Model | T-ES1725 | T-ES2025 | T-ES2325 | T-ES1733 | T-ES2033 | T-ES2333 |
| Cutting area | 1650*2300 | 1950*2300 | 2230*2300 | 1650*3100 | 1950*3100 | 2250*3100 |
| Device dimensions | 5900*2950*2150 | 5900*3250*2150 | 5900*3550*2150 | 7500*2950*2150 | 7500*3250*2150 | 7500*3550*2150 |
| Weight | 4.2T | 4.5T | 4.8T | 4.8T | 5T | 5.5T |
| Maximum cutting speed | 100m/min | |||||
| Maximum cutting thickness | 9cm | |||||
| Cutting accuracy | ≤±1mm | |||||
| Power | 16-25kw | |||||
| Cutting method | Cutting with alternating up and down vibration knife | |||||
| Software | Multi-language interface, free switching | |||||
| Control system | Truster CNC self-developed system 5.0 version | |||||
| Cooling system | Optional super cooling system | |||||
| Sharpening system | Dual-wheel counter-rotating grinding system | |||||
| Spindle speed | 6000rpm/min | |||||
| Motor drive | Servo drive system | |||||
| Device voltage | AC380V/50Hz | |||||
| Device air pressure | 0.55Mpa 160L/min | |||||
T-ES Automatic Multi-Ply cutting machine
Control system
Trustercnc’s self-developed cutting control system CuttingV5.0 adds a super cooling controller for low-melting materials to reduce the adhesion characteristics of chemical fiber materials. It uses a double-sided sharpening controller to increase automatic compensation for sharpening losses to make the blade sharper.
Complex graphics with multiple sharp corners add arbitrary segmented cutting processes to ensure cutting accuracy. Batch recognition of the set segmented process template graphics.
Machine tools and electrical systems
The machine tool has an integrated bed, annealing to relieve stress, and the bed mounting surface is finely processed. The whole machine runs more stably at high speed. The whole machine adopts an automatic electrical control system, selects a large number of original imported electrical components, and adopts Japan Yaskawa’s fully digital AC servo drive system, which has higher cutting accuracy.
Dual drive system
The dual motors are driven synchronously, which ensures greater stability when not in high-speed operation, faster response, smoother operation of the entire machine, and greater acceleration and deceleration capabilities of the entire machine.
Machine head system
The machine head is based on the principle of European and American systems. The strength of the machine head is stronger, the bearing capacity is greater, the vibration is small, the core components are highly wear-resistant, and stable cutting is effectively guaranteed at high speed.
Sharpening system
The European and American sharpening method is adopted, which has a fast sharpening speed, a sharper blade, a more uniform edge, and ensures high-speed cutting accuracy.
Optional Configuration
Single blade
Double blade
Double punch
Triple Punch
7/11 cm head
Super Cooling
Reverse operation
Movement plan（Guide rail）
T-ES Intelligent cutting machine Videos
Industry-handling solutions
Industry applications:
Apparel industry: Smart cutting tables can cope with the problem of multi-layer cutting, realize the fully automated production of cutting lines, and greatly save manpower and operation time. The multi-layer cutting solution can solve the cutting problem of clothing manufacturers and bring great appreciation space. Modular cutting tool combinations (such as high-speed active circular knives, notch modules, drilling, etc.) meet the cutting needs of various types of clothing fabrics. In addition, smart cutting tables can optimize the cutting process, improve fabric utilization, and reduce waste.
Automotive industry: Smart cutting tables are suitable for cutting materials such as automotive interiors, providing customized countertops and comprehensive cutting table size options. Multi-layer fabric and leather cutting solutions are suitable for large-scale cutting production lines, realizing fully automated production of cutting lines, thereby greatly saving manpower and operation time.
Furniture industry: Smart cutting tables are also suitable for furniture manufacturing, especially in the cutting of soft furniture fabrics. Improve production speed and efficiency, shorten work progress and delivery cycle, and ensure high precision.
Aerospace, electronics and other industries: The newly upgraded intelligent cutting equipment has a smaller size, smaller footprint, faster cutting speed, optimized efficiency, customized tabletops, and comprehensive cutting bed size selection, providing low-energy consumption and high-efficiency intelligent CNC cutting systems for the automotive industry, composite materials, fashion, aerospace, and furniture and home industries.
Advantages of intelligent cutting beds:
Improve efficiency: The cutting efficiency of automatic computer cutting beds is about 4 times that of manual cutting, shortening the production cycle.
Ensure accuracy: Intelligent cutting beds can achieve precision cutting and improve efficiency.
Save materials: Optimize cutting paths, reduce cutting time, and save fabrics.
Reduce manual dependence: There is no suction when passing the bed, and each version does not need to be manually re-aligned before cutting can continue, which is easy to operate.
Intelligence: It has an automatic feeding module and can realize continuous cutting, thereby greatly improving production efficiency. The intelligent fault detection system can automatically monitor the production status of the cutting bed, and upload the fault code and phenomenon to the cloud, which is convenient for technicians to remotely troubleshoot problems.
Multifunctional: A wide variety of cutters are available, with intelligent adjustment of cutting methods for different materials.
