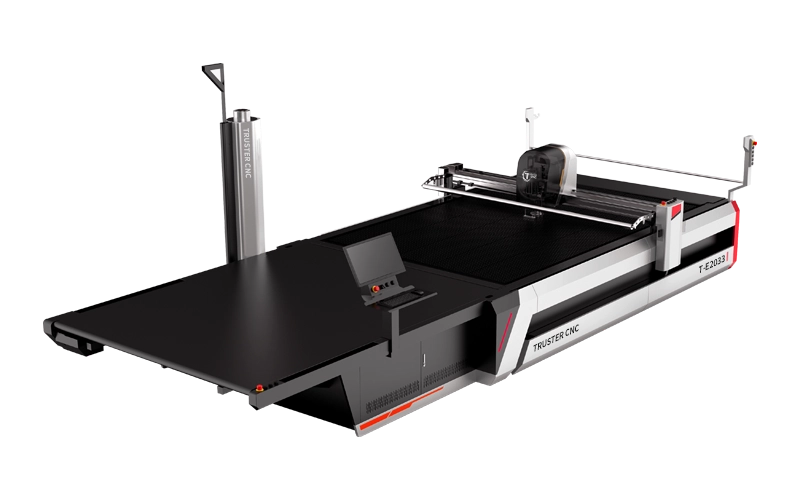

T-E Automatic Multi-Ply garment cutting machine
Features
The T-E Automatic Multi-Ply Cutting System is engineered to deliver optimal solutions for high-volume production across diverse sectors including textiles, furniture, automotive interiors, luggage, and outdoor goods. T-E excels at cutting soft materials with remarkable speed, precision, and intelligent automation. Its integrated Cloud Control Center features a robust data conversion module, guaranteeing seamless compatibility with leading CAD software. By offering strong technical support, T-E empowers customers to transition from traditional manufacturing processes to fully automated production.
High-efficiency cutting head:
1. The maximum speed can reach 70m/min,
2. The maximum cutting speed can reach 7/11cm (after vacuum compression),
3. Greatly improve cutting efficiency,
4. Adopt micro-oil design to reduce oil pollution,
5. Compact cutting head design, more beautiful and easy to maintain.
Intelligent sharpening system:
1. Will not cause sawtooth damage to the cutting knife,
2. Extend the use time of the blade and reduce costs,
3. Easy to disassemble and replace, easy to learn and understand,
4. Choose different specifications of sanding belts according to different fabrics,
5. The sharpening efficiency is significantly improved compared with the non-sanding belt sharpening structure,
6. It can be set to only lift and sharpen the knife at the corner to ensure the cutting quality.
Product parameters
| Model | T-E1725 | T-E2025 | T-E2325 | T-E1733 | T-E2033 | T-E2333 |
| Cutting area | 1650*2300 | 1950*2300 | 2230*2300 | 1650*3100 | 1950*3100 | 2250*3100 |
| Device dimensions | 5900*2950*2150 | 5900*3250*2150 | 5900*3550*2150 | 7500*2950*2150 | 7500*3250*2150 | 7500*3550*2150 |
| Weight | 4.2T | 4.5T | 4.8T | 4.8T | 5T | 5.5T |
| Maximum cutting speed | 70m/min | |||||
| Maximum cutting thickness | 7/11cm | |||||
| Cutting accuracy | ≤±1mm | |||||
| Power | 16-25kw | |||||
| Cutting method | Cutting with alternating up and down vibration knife | |||||
| Software | Multi-language interface, free switching | |||||
| Control system | Truster CNC self-developed system, cutting bed control software can receive multiple formats such as PLT/EXF/CUT/TAC | |||||
| Cooling system | Optional super cooling system | |||||
| Sharpening system | Dual-wheel counter-rotating grinding system | |||||
| Spindle speed | 4500rpm/min | |||||
| Motor drive | Servo drive system | |||||
| Device voltage | AC380V/50Hz | |||||
| Device air pressure | 0.55Mpa 160L/min | |||||
T-E Intelligent cutting machine
Control system
Trustercnc’s independently developed cutting control system CuttingV4.0 optimizes arc, common edge, and boundary speed reduction, optimizes sharp corner and small arc cutting tracks, and adds wave track cutting technology. It automatically identifies symmetrical graphics, adds symmetrical graphics cutting technology, and batch identifies symmetrical graphics based on symmetrical templates. It supports the mutual conversion of I notch and V notch, as well as the size setting of I notch and V notch.
Electrical system
The whole machine electrical system adopts automatic control system and a large number of domestic components to effectively ensure the stable operation of the equipment. It adopts high-precision and high-speed servo drive system to ensure cutting accuracy.
Transmission system
The transmission method adopts high-precision helical gear rack transmission, which has large gear module, high transmission accuracy, high reliability and long service life.
Machine head system
The machine head is based on the Japanese principle. The core components of the machine head are of high hardness, light weight, long service life, high stability, and can effectively guarantee the cutting effect when running at high speed.
Machine bed system
The machine tool has an integrated bed, which is annealed to relieve stress, ensuring that the bed does not deform, has strong wear resistance and high precision.
Sharpening system
Dual-wheel counter-rotating sharpening system, simple sharpening action, high sharpening efficiency and long grinding wheel service life.
Optional Configuration
Single blade
Double blade
Double punch
Triple Punch
7/11 cm head
Super Cooling
Reverse operation
Movement plan（Guide rail）
T-E Intelligent cutting machine Videos
Samples
Industry-handling solutions
Industry applications:
Apparel industry: Smart cutting tables can cope with the problem of multi-layer cutting, realize the fully automated production of cutting lines, and greatly save manpower and operation time. The multi-layer cutting solution can solve the cutting problem of clothing manufacturers and bring great appreciation space. Modular cutting tool combinations (such as high-speed active circular knives, notch modules, drilling, etc.) meet the cutting needs of various types of clothing fabrics. In addition, smart cutting tables can optimize the cutting process, improve fabric utilization, and reduce waste.
Automotive industry: Smart cutting tables are suitable for cutting materials such as automotive interiors, providing customized countertops and comprehensive cutting table size options. Multi-layer fabric and leather cutting solutions are suitable for large-scale cutting production lines, realizing fully automated production of cutting lines, thereby greatly saving manpower and operation time.
Furniture industry: Smart cutting tables are also suitable for furniture manufacturing, especially in the cutting of soft furniture fabrics. Improve production speed and efficiency, shorten work progress and delivery cycle, and ensure high precision.
Aerospace, electronics and other industries: The newly upgraded intelligent cutting equipment has a smaller size, smaller footprint, faster cutting speed, optimized efficiency, customized tabletops, and comprehensive cutting bed size selection, providing low-energy consumption and high-efficiency intelligent CNC cutting systems for the automotive industry, composite materials, fashion, aerospace, and furniture and home industries.
Advantages of intelligent cutting beds:
Improve efficiency: The cutting efficiency of automatic computer cutting beds is about 4 times that of manual cutting, shortening the production cycle.
Ensure accuracy: Intelligent cutting beds can achieve precision cutting and improve efficiency.
Save materials: Optimize cutting paths, reduce cutting time, and save fabrics.
Reduce manual dependence: There is no suction when passing the bed, and each version does not need to be manually re-aligned before cutting can continue, which is easy to operate.
Intelligence: It has an automatic feeding module and can realize continuous cutting, thereby greatly improving production efficiency. The intelligent fault detection system can automatically monitor the production status of the cutting bed, and upload the fault code and phenomenon to the cloud, which is convenient for technicians to remotely troubleshoot problems.
Multifunctional: A wide variety of cutters are available, with intelligent adjustment of cutting methods for different materials.
