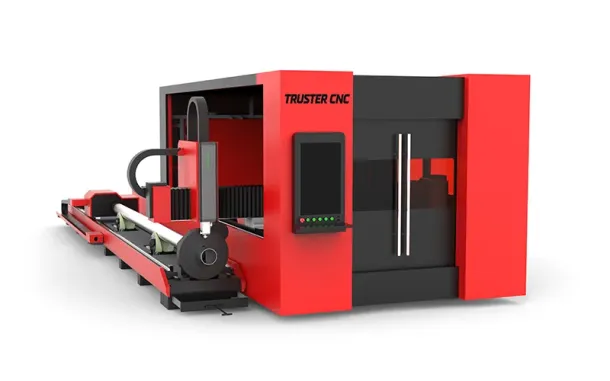

TF-PE2040 Protective Enclosed Exchange Table Tube & Sheet Fiber Laser Cutting Machine

The TF-PE2040 represents a pinnacle of precision and efficiency in metal processing, seamlessly integrating tube and sheet cutting capabilities within a protective enclosure. This advanced fiber laser cutting machine is engineered for demanding industrial environments where safety, speed, and accuracy are paramount. The inclusion of an exchange table further enhances productivity by minimizing downtime between cutting cycles.Traditional sheet metal cutters often involve a range of tools, each with its own set of advantages and drawbacks. Manual methods, such as hand shears and nibblers, are suitable for basic cuts and small-scale projects. For more intricate designs and thicker materials, powered tools like electric shears, plasma cutters, and CNC punching machines are typically employed. However, these methods often fall short in terms of precision, speed, and material versatility when compared to modern laser cutting technology. Similarly, tube cutting often involved manual sawing or specialized tube cutting equipment, which also lacked the precision and automated capabilities of a laser system.These tools are used to cut various materials, such as mild steel, stainless steel, aluminum, copper, and brass. The TF-PE2040, with its powerful fiber laser source, is adept at processing a wide array of these materials with exceptional accuracy and speed.

This technology is ideal for cutting materials like: high-reflective materials such as aluminum and copper alloys, high-strength steels, and a variety of tubes with different shapes like round, square, rectangular, and oval. The enclosed design allows for safe cutting of materials that may produce fumes or sparks.

Applications of the TF-PE2040 Protective Enclosed Exchange Table Tube & Sheet Fiber Laser Cutting Machine:

• Automotive Industry: Manufacturing chassis components, exhaust systems, structural supports, and other intricate parts from both sheet metal and tubes.

• Aerospace Sector: Producing high-precision components for aircraft and spacecraft, requiring tight tolerances and complex geometries.

• Construction Equipment: Fabricating frames, enclosures, and structural elements for heavy machinery.

• Furniture Manufacturing: Creating stylish and durable furniture pieces using both sheet metal and tubes.

• Fitness Equipment Industry: Cutting tubing for fitness equipment frames and sheet metal for panels and enclosures.

• Lighting Fixtures: Manufacturing decorative lighting fixtures with complex shapes and patterns from sheet metal and tubing.

• General Fabrication: Handling a wide variety of custom cutting jobs for diverse industrial applications.

• Medical Device Manufacturing: Creating components for medical devices requiring precision and biocompatibility.

• Agricultural Equipment: Cutting parts for tractors, harvesters, and other agricultural machinery.

How to Use the TF-PE2040 (General Steps):

1. Material Loading: Load the sheet metal or tube onto the appropriate cutting station (sheet or tube). The exchange table facilitates quick material loading and unloading.

2. Programming: Import or create the desired cutting pattern using CAD/CAM software. Optimize the cutting parameters, such as laser power, cutting speed, and gas assist, for the specific material and thickness.

3. Machine Setup: Input the cutting parameters into the machine’s control system. Select the appropriate laser settings and cutting program.

4. Focusing: Adjust the laser focus to the optimal position for the material and thickness.

5. Cutting Process: Initiate the cutting process from the control panel. The enclosed design ensures operator safety during cutting.

6. Part Removal: Once the cutting is complete, remove the finished parts. The exchange table allows for unloading while another sheet/tube is being processed.

7. Maintenance: Regularly clean the machine, check the laser lens, and perform other routine maintenance to ensure optimal performance.

Safety Precautions:

• Always wear appropriate laser safety glasses.

• Ensure the machine is properly grounded and shielded.

• Follow the manufacturer’s safety guidelines and operating instructions.

• Never attempt to operate the machine without proper training.

• The enclosed design helps mitigate risks, but caution is still essential.
