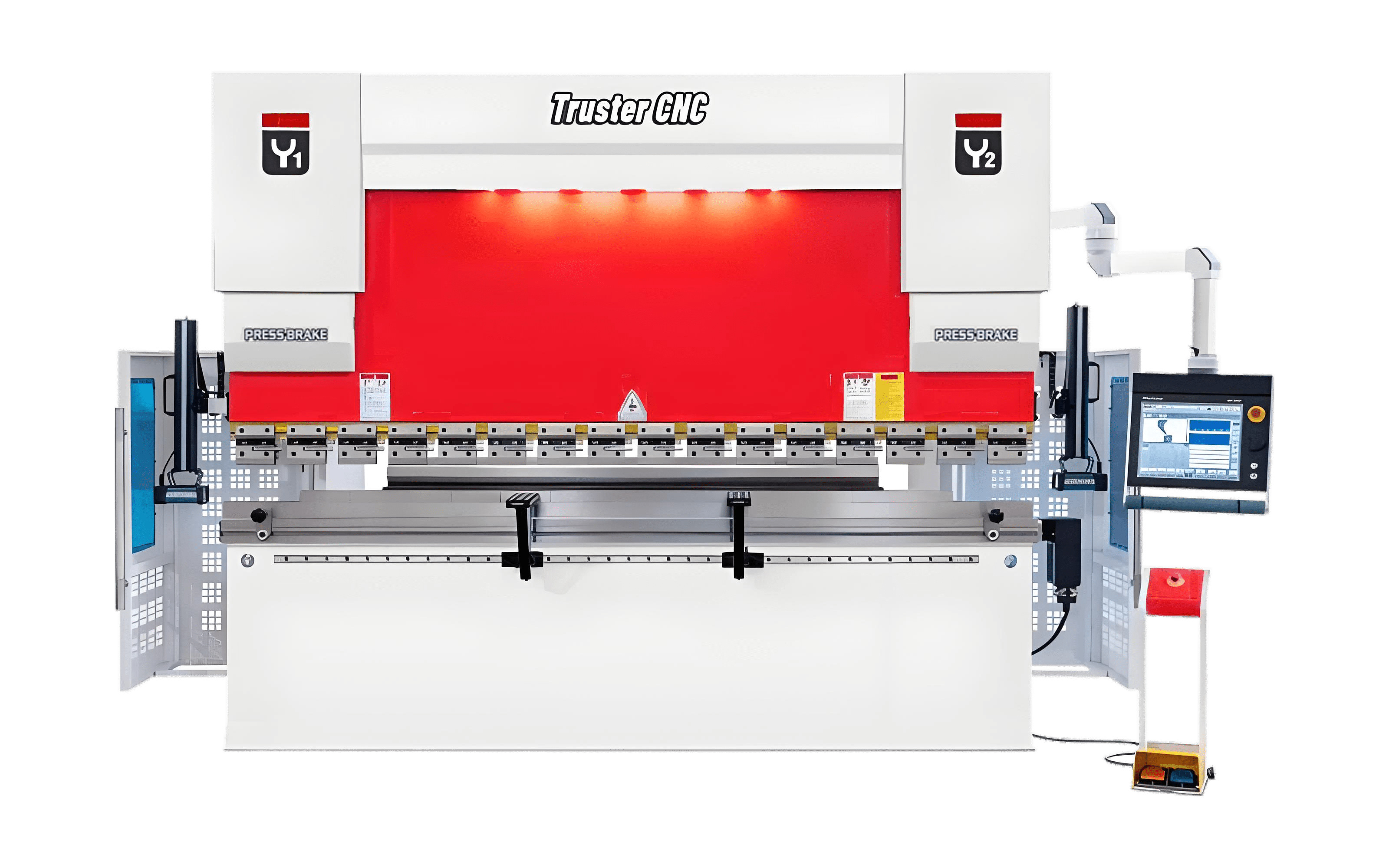

WE67K Series
Electro-hydraulic Servo CNC Press Brake
Features
The machine is in an overall welding and overall processing structure, and the main parts of machine are all analyzed by ANSYS finite element analysis software, which has ensured the reliability of machine and the precision of entire macnine.
The CNC control system adopts Netherland DELElM, ltalian ESA, or Swiss CYBELEC products, which can achieve the functions of graphic programming for bending angle, compensation for angle amendment, automatic calculation also adjustment of bending pressure, automatic calculation of compensation for workbench distortion,extending length of workpieces, bending pressure for bottom bending, open distance, and automatic withdrawal of rear stopper, etc.
No special customized oil cylinder required,consistent with conventional valve group installation.
The pipeline connection is simple,the installation efficiency is high,and the problem of oil leakage is reduced
Independent fuel tank to avoid cleanine troubles, eliminate cleaning problems such as eakage and welding slae,and improve installation efficiency by more than 50%.
Energy saving,fuel saving,oil temperature reducing,servo motor low-speed oi replenishment during pressure maintaining stage.
eliminating oil overflow, controlling oil temperature rise,reducing the heat dissipation area of the oil tank by 2/3.
Adopting customized oil pump and special noise reduction process.The submersible installation of the oil pump effectively controls thenoise during high-speed operation.
Product parameters
Electro-hydraulic Servo CNC Press Brake
Hydraulic system
The integrated German Rexroth hydraulic control system is adopted to
simplify the pipeline,prevent leakage,improve the working stability of the
machine tool,and make the appearance more concise and beautiful,The
use of internal gear pump made in Germany or Japan ensures low noise
and long service life of the whole system.
Clamping
The punch quick clamping can be made based on the customer’s
requirement to reduce work load and improve productivity.
Cylinder
The electric-hydraulic servo system can control the synchronization of two cylinders. Combined with magnetic displacement sensor ofintemational standard,the fully closed loop control is formed with high synchronization control accuracy,and high bending and repetitve positioning accuracy.
Mobile Front Bracket
The punch quick clamping can be made based on the customer’s
requirement to reduce work load and improve productivity.
Servo Main Motor
High efficiency,energy saving,reliable operation,convenient maintenance,
good cooling effect at different speeds.
C-Type Throat Compensation Device
The device is installed at the bottom of the throat of the machine tool
[Standard configuration], which is connected with the magnetic gate ruler,
so the stress and strain of the machine will not affect the precision of the
measuring element, so that the bending precision of any thickness and any
material sheet will be ensured.
Optional Configuration
Mechanical Compensation Device
Light Mobile Front Bracket Device
Safety Light Curtain
Double-sided Quick clip
Vera Automatic Hydraulic Clamping Device
Bagkgauge System
X-R-Z1-Z2-Four axis rear stopper system
Rear stopper
X1-X2-R1-R2-Z1-Z2-Six Axis Rear Retaining System
Pump control system
CNC System
DA53T System
DA66T System
CT8 System
CT12 System
Electro-hydraulic Servo CNC Press Brake Videos
Industry-handling solutions
Industry applications:
Press brakes are versatile machines used in various industries to bend and form sheet metal into precise shapes and angles. Here are some key applications of press brakes
Automotive Industry:
Bending body components such as doors, hoods, and roofs.
Producing exhaust systems and frame panels.
Aerospace and Aviation:
Crafting enclosures for engines and other critical components.
Manufacturing parts for wing assembly, landing gear, and aircraft frames.
Construction:
Producing panels and sheets for roofing.
Creating tile cladding, metal decorations, and frames for doors and windows.
Bending structural metal sheets for beams and pillars.
Agricultural Equipment:
Making brackets and frames for agricultural vehicles.
Producing structural components for supports.
Medical Industry:
Frames for large equipment.
Mounting brackets.
Hospital beds and stretchers.
Oil and Energy Sector:
Parts for drilling machines.
Storage tanks and pressure vessels.
Safety device parts.
Advertising:
Letters and logos for metal sheet signage.
Decorative elements like frames and borders.
Railways:
Parts for train locomotives.
Railings and structural parts for trains.
Electronics and Telecommunication:
Enclosures for communication boxes.
Brackets for mounting telecommunication devices.
Manufacturing Sector:
Components for production lines and manufacturing equipment enclosures.
Marine Industry:
Various marine components requiring precise metal bending.
Key Benefits
Precision and Consistency: Press brakes ensure high-quality, consistent products by providing precise bends.
Versatility: They can handle a wide range of materials and thicknesses.
Safety Features: Modern press brakes include advanced safety features to protect operators.
